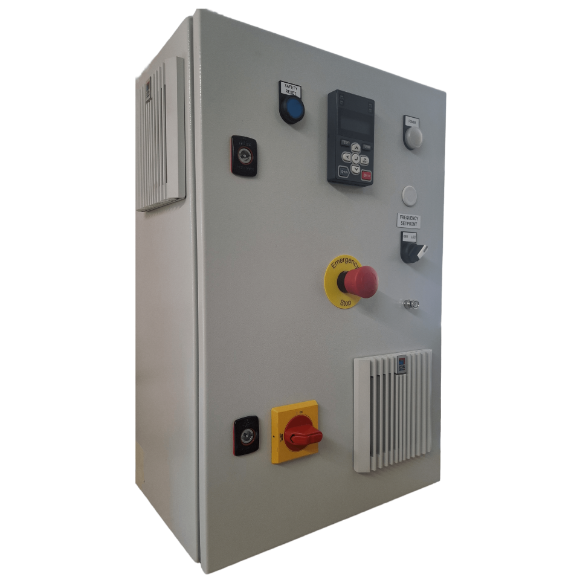

Picture of IP54 Enclosed 4kW/5.5kW 400V 3ph AC Inverter Drive

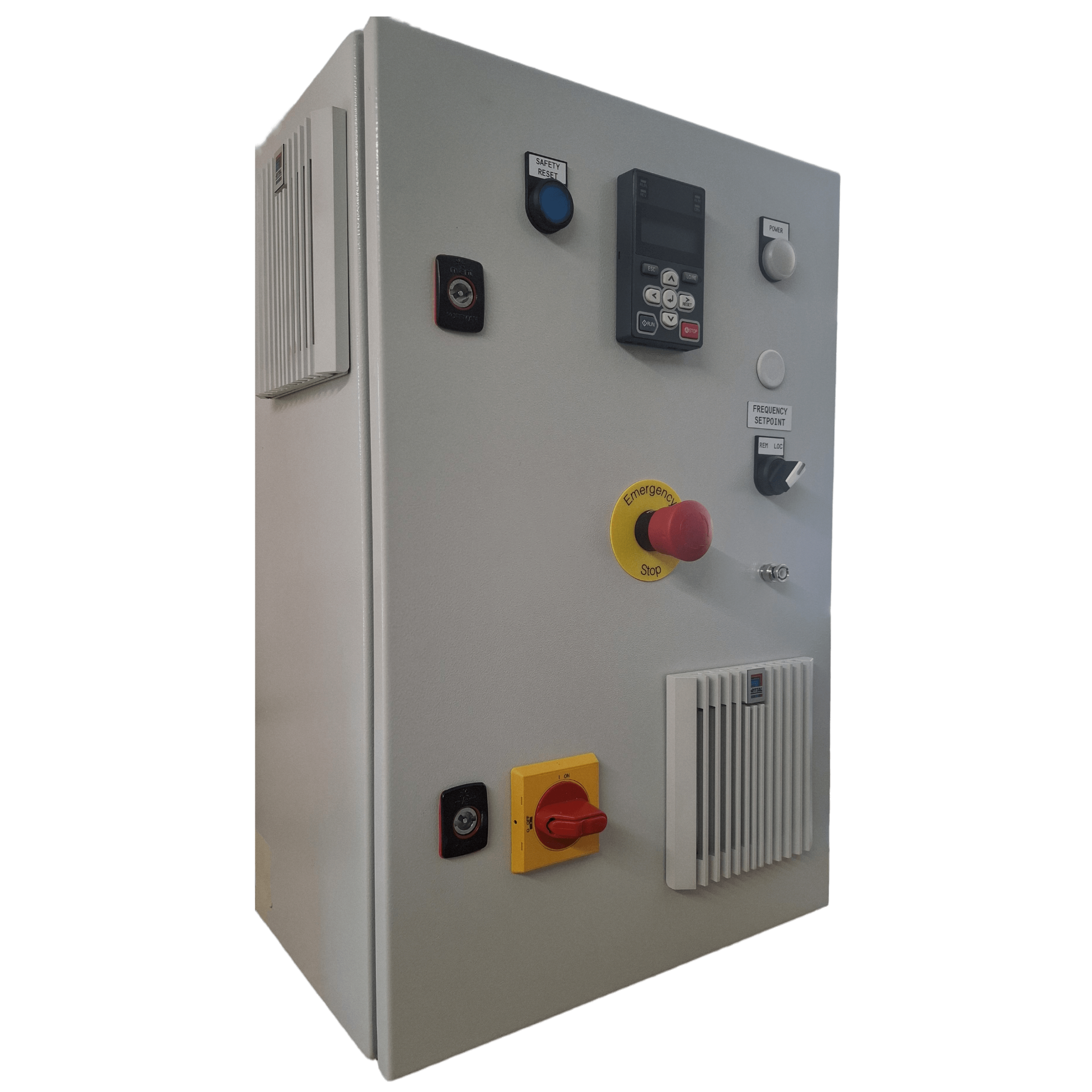

IP54 Enclosed 4kW/5.5kW 400V 3ph AC Inverter Drive

Fully enclosed IP54 ready to run Yaskawa Inverter Drive to run a 4kW motor rated to 9.2A or 5.5kW Fan/Pump rated to 11.9A
SKU: IN4I-400
Manufacturers: Yaskawa , IO Automation Limited
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
£1,204.35 excl VAT

Input Current: 10.4A at High Overload, 14A when Fan/Pump rated.
Input Voltage: 380-480V Three Phase -15% +10% at 50-60Hz ±5%.

  • 3Ph 400V 50Hz supply
  • 110V AC SELV control circuit
  • Mild steel enclosure
  • Fan and filter set
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Drive Healthy LED
  • Drive Running LED
  • MCB
  1. Optional Potentiometer
  2. Optional Forwards/Reverse Switch
  3. Optional Safe Torque Off to SIL 3/PLe

EMC Compliance: IEC EN 61800-3 Category C2 (Restricted Domestic). Disabled by default, can be enabled via screw.

Input Current: 10.4A at High Overload, 14A when Fan/Pump rated.
Input Voltage: 380-480V Three Phase -15% +10% at 50-60Hz ±5%.

  • 3Ph 400V 50Hz supply
  • 110V AC SELV control circuit
  • Mild steel enclosure
  • Fan and filter set
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Drive Healthy LED
  • Drive Running LED
  • MCB
  1. Optional Potentiometer
  2. Optional Forwards/Reverse Switch
  3. Optional Safe Torque Off to SIL 3/PLe

EMC Compliance: IEC EN 61800-3 Category C2 (Restricted Domestic). Disabled by default, can be enabled via screw.

Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 500x400x260mm
Inverter Specifications
Supply Voltage 380-480V Three Phase
Operation Mode VxF or Sensorless Vector
Write your own review
  • Product can be reviewed only after purchasing it
  • Only registered users can write reviews
*
*
Bad
Excellent
*
*
*
Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 500x400x260mm
Inverter Specifications
Supply Voltage 380-480V Three Phase
Operation Mode VxF or Sensorless Vector
