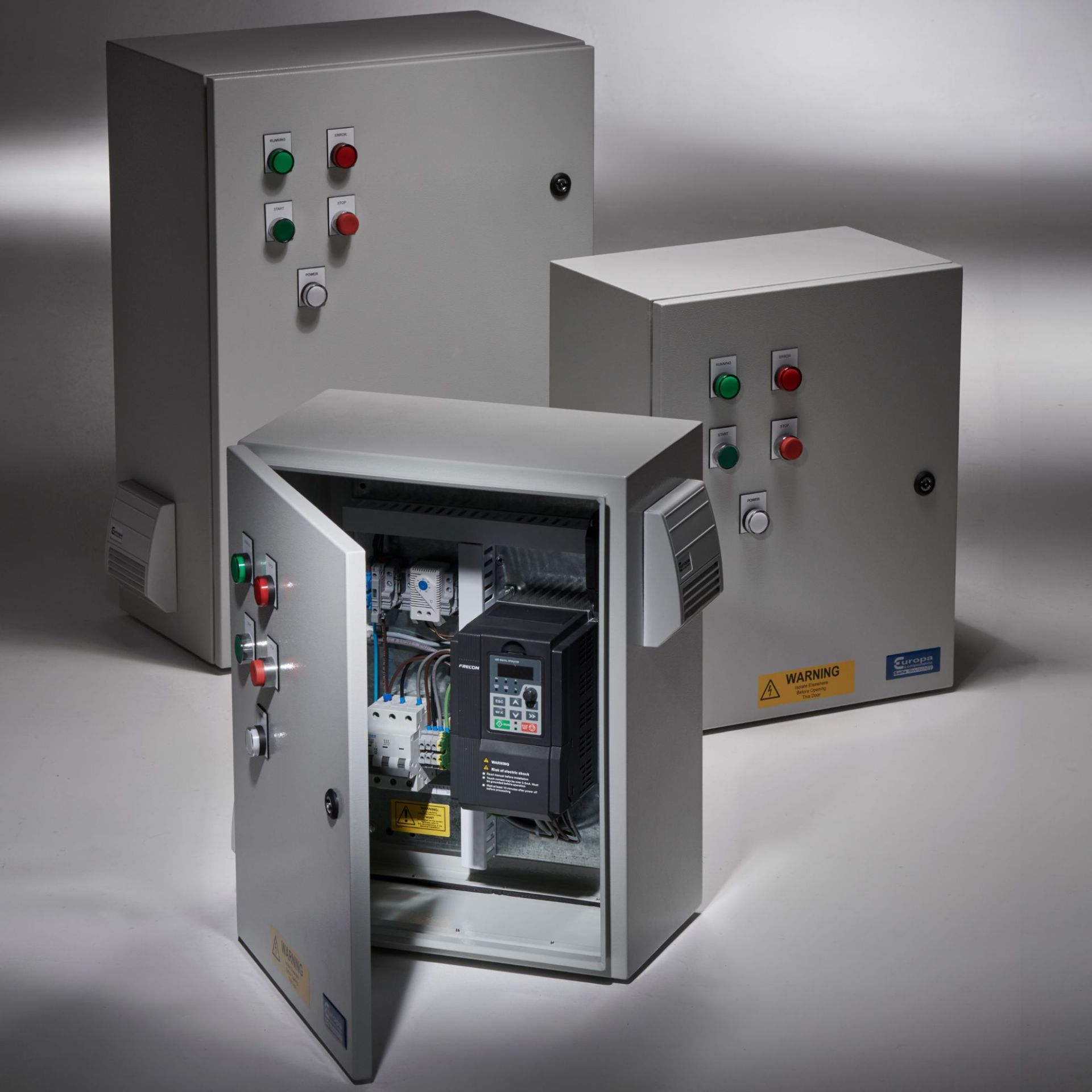

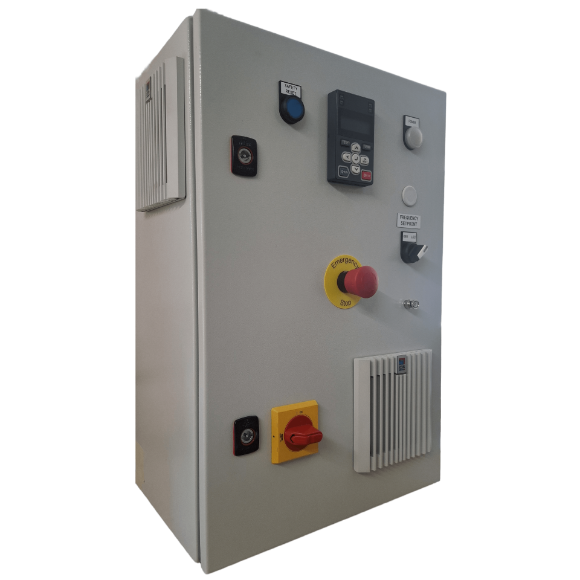

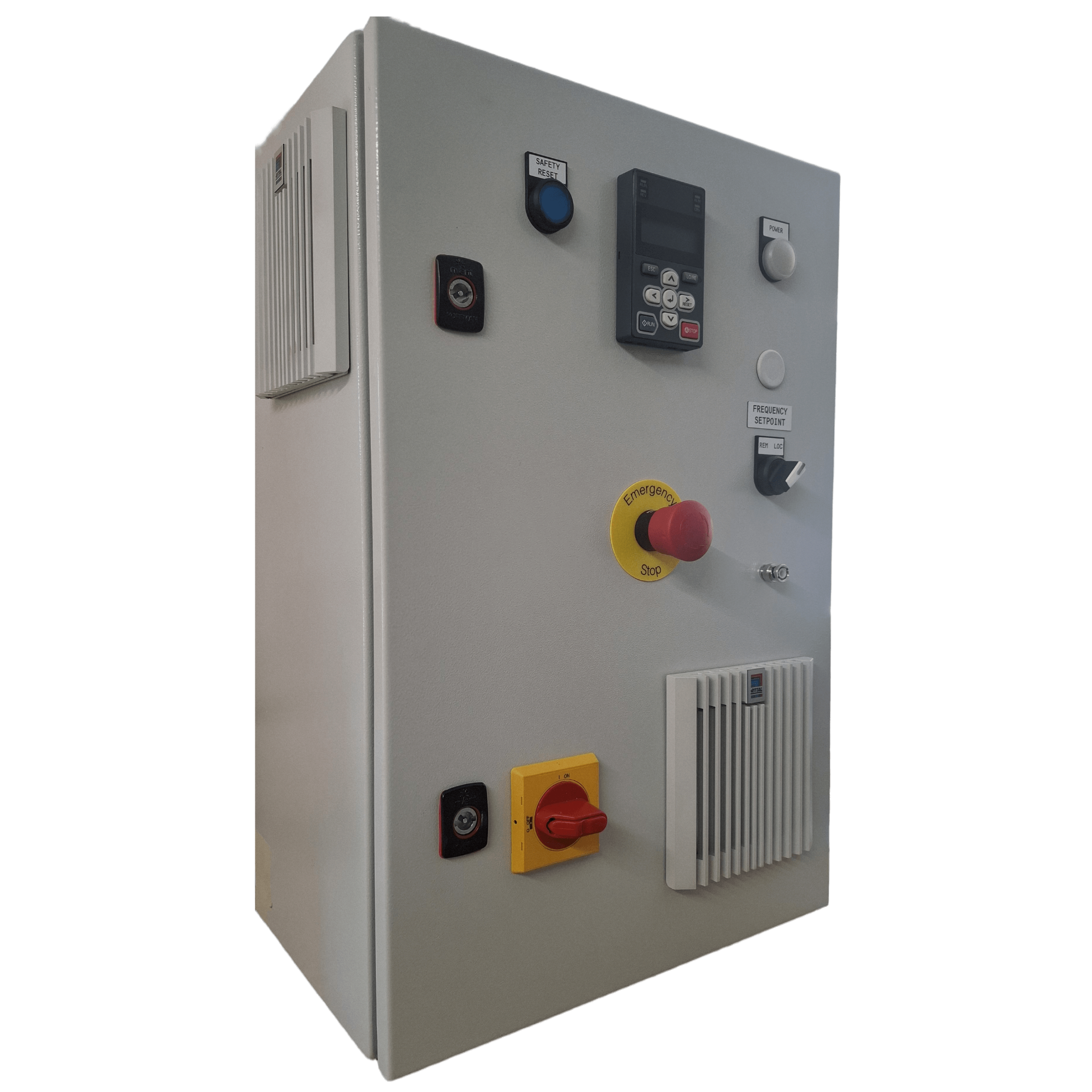

Picture of IP54 Enclosed 3kW/4kW 400V 3ph AC Inverter Drive
Picture of IP54 Enclosed 3kW/4kW 400V 3ph AC Inverter Drive Picture of IP54 Enclosed 3kW/4kW 400V 3ph AC Inverter Drive Picture of IP54 Enclosed 3kW/4kW 400V 3ph AC Inverter Drive

IP54 Enclosed 3kW/4kW 400V 3ph AC Inverter Drive

Fully enclosed IP54 ready to run Yaskawa Inverter Drive to run a 3kW motor rated to 7.3A or 4kW Fan/Pump rated to 8.9A
SKU: IN3I-400
Manufacturer part number: IN3I-400
Manufacturer: IO Automation Limited
£1,011.46 excl VAT

Input Current: 8.2A at High Overload, 9.4A when Fan/Pump rated.
Input Voltage: 380-480V Three Phase -15% +10% at 50-60Hz ±5%.

  • 3Ph 400V 50Hz supply
  • 110V AC SELV control circuit
  • Mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Drive Healthy LED
  • Drive Running LED
  • MCB
  1. Optional Potentiometer
  2. Optional Forwards/Reverse Switch
  3. Optional Safe Torque Off to SIL 3/PLe

EMC Compliance: IEC EN 61800-3 Category C2 (Restricted Domestic). Disabled by default, can be enabled via screw.

Input Current: 8.2A at High Overload, 9.4A when Fan/Pump rated.
Input Voltage: 380-480V Three Phase -15% +10% at 50-60Hz ±5%.

  • 3Ph 400V 50Hz supply
  • 110V AC SELV control circuit
  • Mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Drive Healthy LED
  • Drive Running LED
  • MCB
  1. Optional Potentiometer
  2. Optional Forwards/Reverse Switch
  3. Optional Safe Torque Off to SIL 3/PLe

EMC Compliance: IEC EN 61800-3 Category C2 (Restricted Domestic). Disabled by default, can be enabled via screw.

Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 500x400x260mm
Inverter Specifications
Rated Power 3kW, 4kW (Fan & Pump)
Supply Voltage 380-440V Three Phase
Operation Mode VxF or Sensorless Vector
