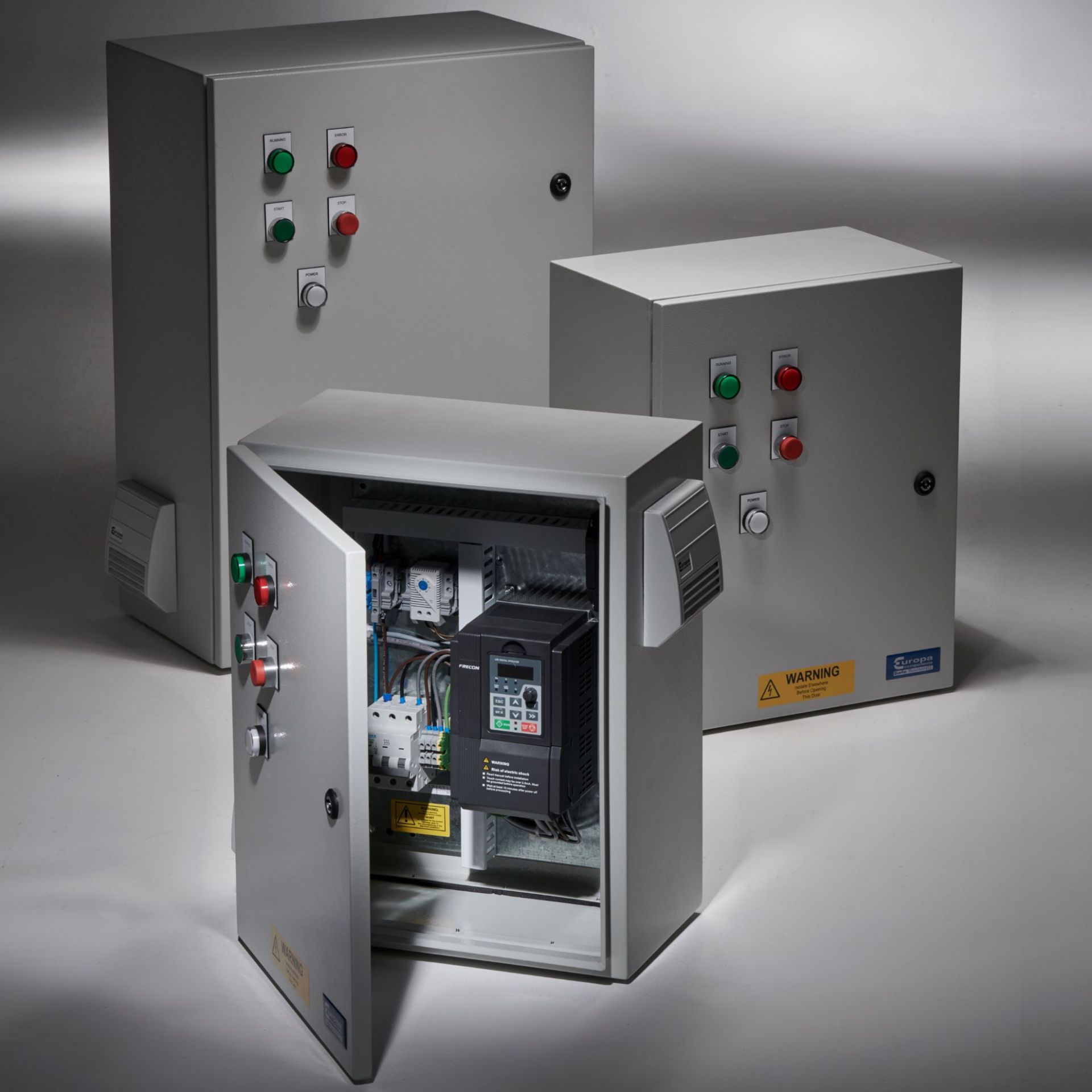

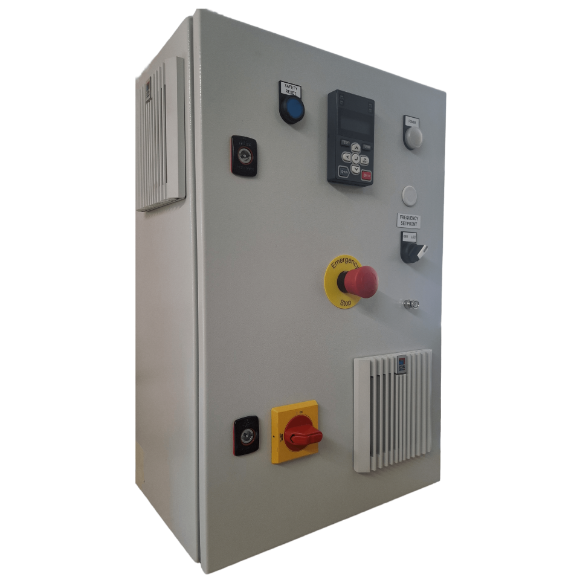

IP54 Enclosed 0.55kW/0.75kW 230V 1ph to 3ph AC Inverter Drive

Fully enclosed IP54 ready to run Yaskawa Inverter Drive to run a 0.55kW motor rated to 3A or 0.75kW Fan/Pump motor rated to 3.5A.
Availability: Built to order - current lead-time is 2-4 days.
SKU: IN0.55I-230
Manufacturer part number: IN0.55I-230
Delivery date: 3-5 days
Manufacturer: IO Automation Limited
£738.28 excl VAT
£704.80 excl VAT

Input Current: 5.5A at High Overload, 7.3A when Fan/Pump rated.
Input Voltage: 200-240V Single Phase -15% +10% at 50-60Hz ±5%

  • 1Ph 230V 50Hz supply
  • 110V AC SELV control circuit
  • Mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Drive Healthy LED
  • Drive Running LED
  • MCB
  1. Optional Potentiometer
  2. Optional Forwards/Reverse Switch
  3. Optional Safe Torque Off to SIL 3/PLe

EMC Compliance: IEC EN 61800-3 Category C1 (Domestic). Disabled by default, can be enabled via screw.

Input Current: 5.5A at High Overload, 7.3A when Fan/Pump rated.
Input Voltage: 200-240V Single Phase -15% +10% at 50-60Hz ±5%

  • 1Ph 230V 50Hz supply
  • 110V AC SELV control circuit
  • Mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Drive Healthy LED
  • Drive Running LED
  • MCB
  1. Optional Potentiometer
  2. Optional Forwards/Reverse Switch
  3. Optional Safe Torque Off to SIL 3/PLe

EMC Compliance: IEC EN 61800-3 Category C1 (Domestic). Disabled by default, can be enabled via screw.

Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 400x400x210mm
Inverter Specifications
Rated Power 0.55kW, 0.75kW (Fan & Pump)
Supply Voltage 200-240V Single Phase
Operation Mode VxF or Sensorless Vector
