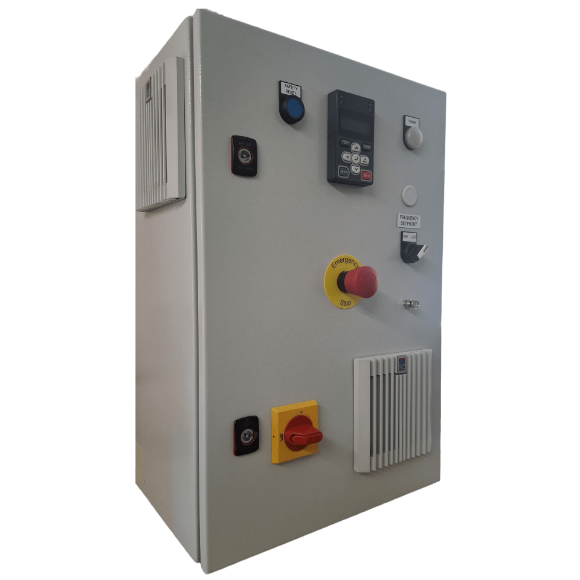

Picture of IP54 Enclosed 0.25kW/0.37kW 230V 1ph to 3ph AC Inverter Drive

IP54 Enclosed 0.25kW/0.37kW 230V 1ph to 3ph AC Inverter Drive

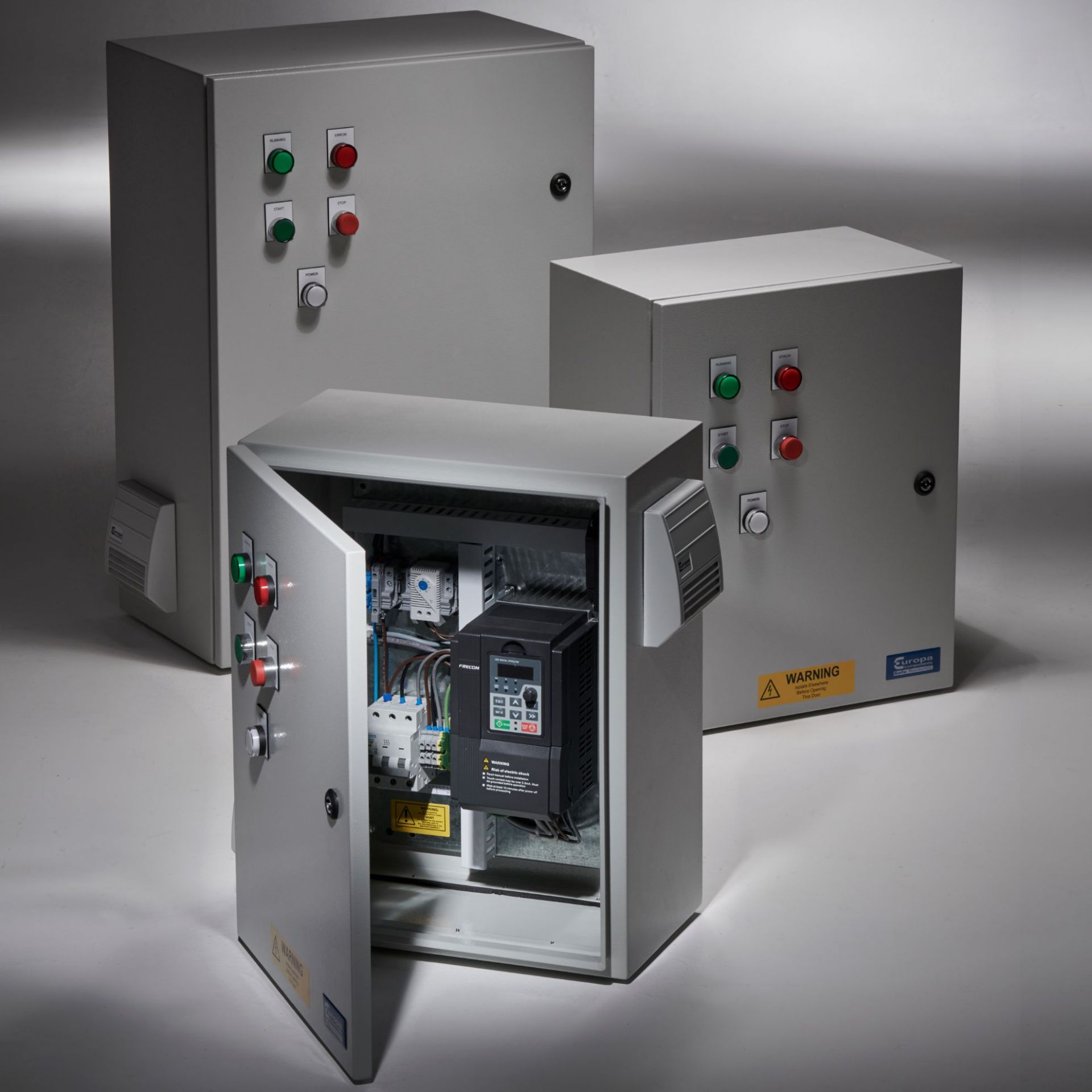

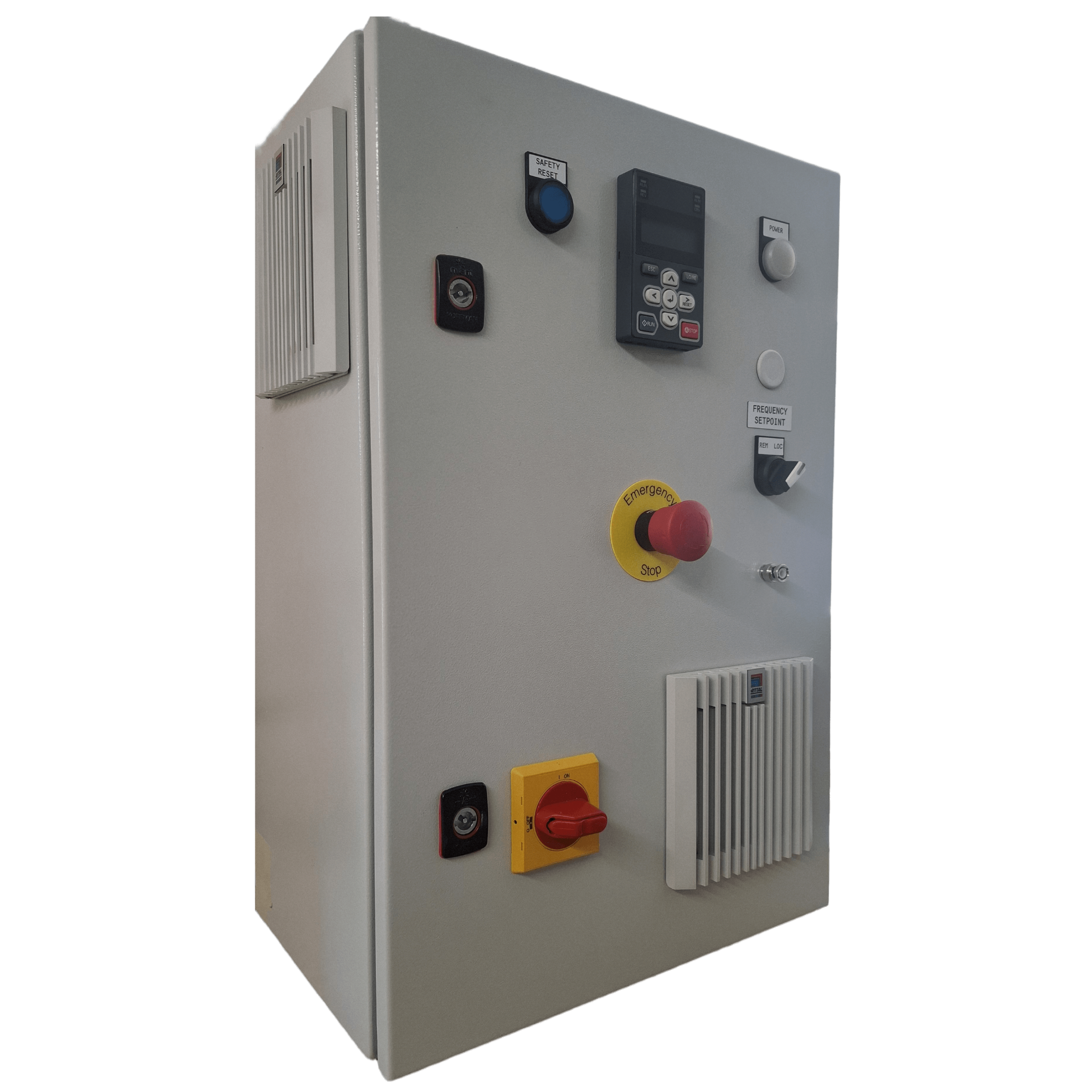

Fully enclosed IP54 ready to run Yaskawa Inverter Drive to run a 0.25kW motor rated to 1.6A or 0.37kW Fan/Pump motor rated to 1.9A.
Availability: Out of stock - on backorder and will be dispatched once in stock (2-4 days).
SKU: IN0.25I-230
Manufacturer part number: IN0.25I-230
Delivery date: 3-5 days
Manufacturer: IO Automation Limited
£694.60 excl VAT

Input Current: 2.8A at High Overload, 5A when Fan/Pump rated.
Input Voltage: 200-240V Single Phase -15% +10% at 50-60Hz ±5%

  • 1Ph 230V 50Hz supply
  • 24V DC SELV control circuit
  • Mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Drive Healthy LED
  • Drive Running LED
  • MCB
  1. Optional Potentiometer
  2. Optional Forwards/Reverse Switch
  3. Optional Safe Torque Off to SIL 3/PLe

EMC Compliance: IEC EN 61800-3 Category C1 (Domestic). Disabled by default, can be enabled via screw.

Input Current: 2.8A at High Overload, 5A when Fan/Pump rated.
Input Voltage: 200-240V Single Phase -15% +10% at 50-60Hz ±5%

  • 1Ph 230V 50Hz supply
  • 24V DC SELV control circuit
  • Mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Drive Healthy LED
  • Drive Running LED
  • MCB
  1. Optional Potentiometer
  2. Optional Forwards/Reverse Switch
  3. Optional Safe Torque Off to SIL 3/PLe

EMC Compliance: IEC EN 61800-3 Category C1 (Domestic). Disabled by default, can be enabled via screw.

Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 400x300x210mm
Inverter Specifications
Rated Power 0.25kW, 0.37kW (Fan & Pump)
Supply Voltage 200-240V Single Phase
Operation Mode VxF or Sensorless Vector
Write your own review
  • Product can be reviewed only after purchasing it
  • Only registered users can write reviews
*
*
Bad
Excellent
*
*
*
Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 400x300x210mm
Inverter Specifications
Rated Power 0.25kW, 0.37kW (Fan & Pump)
Supply Voltage 200-240V Single Phase
Operation Mode VxF or Sensorless Vector
