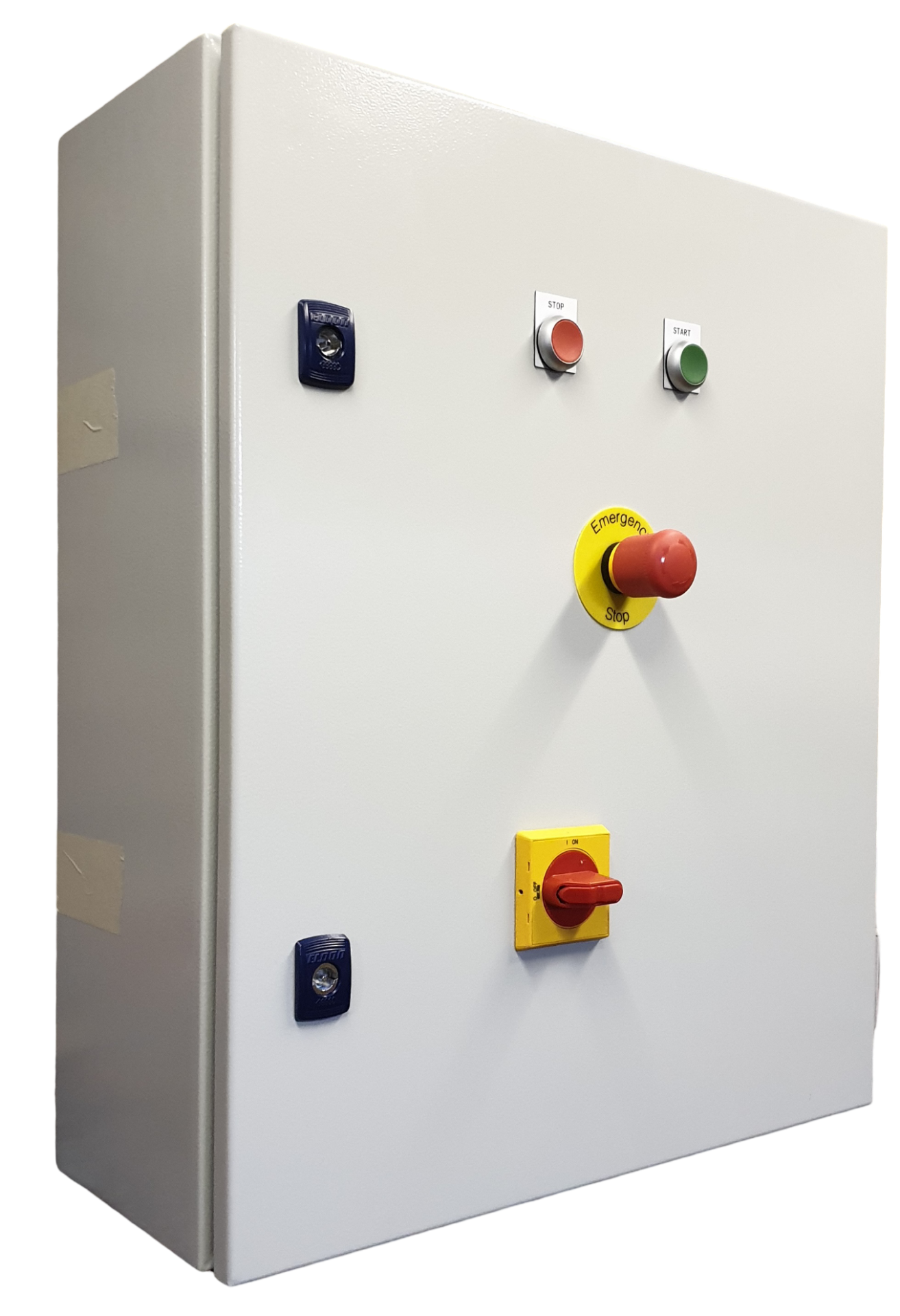

Picture of 30kW Star Delta Starter, Trip Class 20
Picture of 30kW Star Delta Starter, Trip Class 20 Picture of 30kW Star Delta Starter, Trip Class 20

30kW Star Delta Starter, Trip Class 20

Starter panel with isolator to control a three phase 30kW motor. IP66 mild steel enclosure and comes included with fuses and 15-45A thermal overload relay to be set at 0.58 x full load current (FLC)
Availability: Please select required attribute(s)
SKU: SDS30i-C20
Manufacturer part number: SDS30i-C20
Free shipping
Manufacturer: IO Automation Limited
*
£840.39 excl VAT

Class 20 overload and max full load current 58A

  • 3Ph 415V 50Hz supply
  • Choice of control circuit voltage
  • IP66 mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Fuses and thermal overload relay

These panels are fully wired to terminals for motor connection with the incoming mains to be wired into the included isolator.

Suitable for:

Normal starting (CLASS 10)

  • Pumps
  • Heat pumps
  • Hydraulic pumps
  • Presses
  • Conveyor belts
  • Roller conveyors
  • Screw conveyors
  • Escalators
  • Piston compressors
  • Screw compressors
  • Small fans
  • Centrifugal blowers
  • Bow thrusters

Heavy starting (CLASS 20)

  • Stirrers
  • Extruders
  • Lathes
  • Milling machines



Class 20 overload and max full load current 58A

  • 3Ph 415V 50Hz supply
  • Choice of control circuit voltage
  • IP66 mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Fuses and thermal overload relay

These panels are fully wired to terminals for motor connection with the incoming mains to be wired into the included isolator.

Suitable for:

Normal starting (CLASS 10)

  • Pumps
  • Heat pumps
  • Hydraulic pumps
  • Presses
  • Conveyor belts
  • Roller conveyors
  • Screw conveyors
  • Escalators
  • Piston compressors
  • Screw compressors
  • Small fans
  • Centrifugal blowers
  • Bow thrusters

Heavy starting (CLASS 20)

  • Stirrers
  • Extruders
  • Lathes
  • Milling machines



Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 600x500x210mm
Star Delta Starter Specification
Rated power 30kW
Rated operational voltage 400-415V Three Phase
Rated motor current 58 A
Trip Class 20
Write your own review
  • Product can be reviewed only after purchasing it
  • Only registered users can write reviews
*
*
Bad
Excellent
*
*
*
Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 600x500x210mm
Star Delta Starter Specification
Rated power 30kW
Rated operational voltage 400-415V Three Phase
Rated motor current 58 A
Trip Class 20
