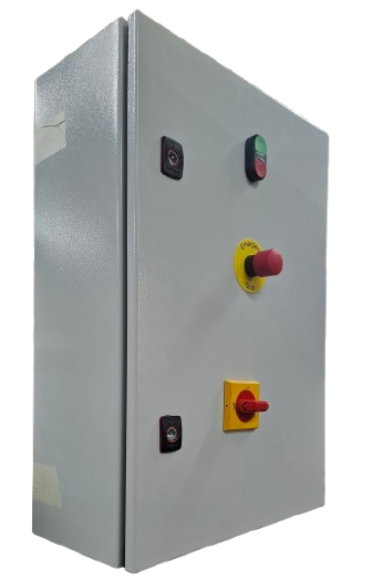

30kW Star Delta Starter

Starter panel with isolator to control a three phase 30kW motor. IP66 mild steel enclosure and comes included with fuses and 30-40A thermal overload relay to be set at 0.58 x full load current (FLC)
Availability: Please select required attribute(s)
SKU: SDS30i
Manufacturer part number: SDS30i
Free shipping
Manufacturer: IO Automation Limited
*
£638.08 excl VAT

Class 10 overload and max full load current 58A

  • 3Ph 415V 50Hz supply
  • Choice of control circuit voltage
  • IP66 mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Fuses and thermal overload relay

These panels are fully wired to terminals for motor connection with the incoming mains to be wired into the included isolator.

Suitable for:

Normal starting (CLASS 10)
Pumps
Heat pumps
Hydraulic pumps
Presses
Conveyor belts
Roller conveyors
Screw conveyors
Escalators
Piston compressors
Screw compressors
Small fans
Centrifugal blowers
Bow thrusters

Class 10 overload and max full load current 58A

  • 3Ph 415V 50Hz supply
  • Choice of control circuit voltage
  • IP66 mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Fuses and thermal overload relay

These panels are fully wired to terminals for motor connection with the incoming mains to be wired into the included isolator.

Suitable for:

Normal starting (CLASS 10)
Pumps
Heat pumps
Hydraulic pumps
Presses
Conveyor belts
Roller conveyors
Screw conveyors
Escalators
Piston compressors
Screw compressors
Small fans
Centrifugal blowers
Bow thrusters

Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 600x400x210mm
Star Delta Starter Specification
Rated power 30kW
Rated operational voltage 400-415V Three Phase
Rated motor current 58 A
Trip Class 10
