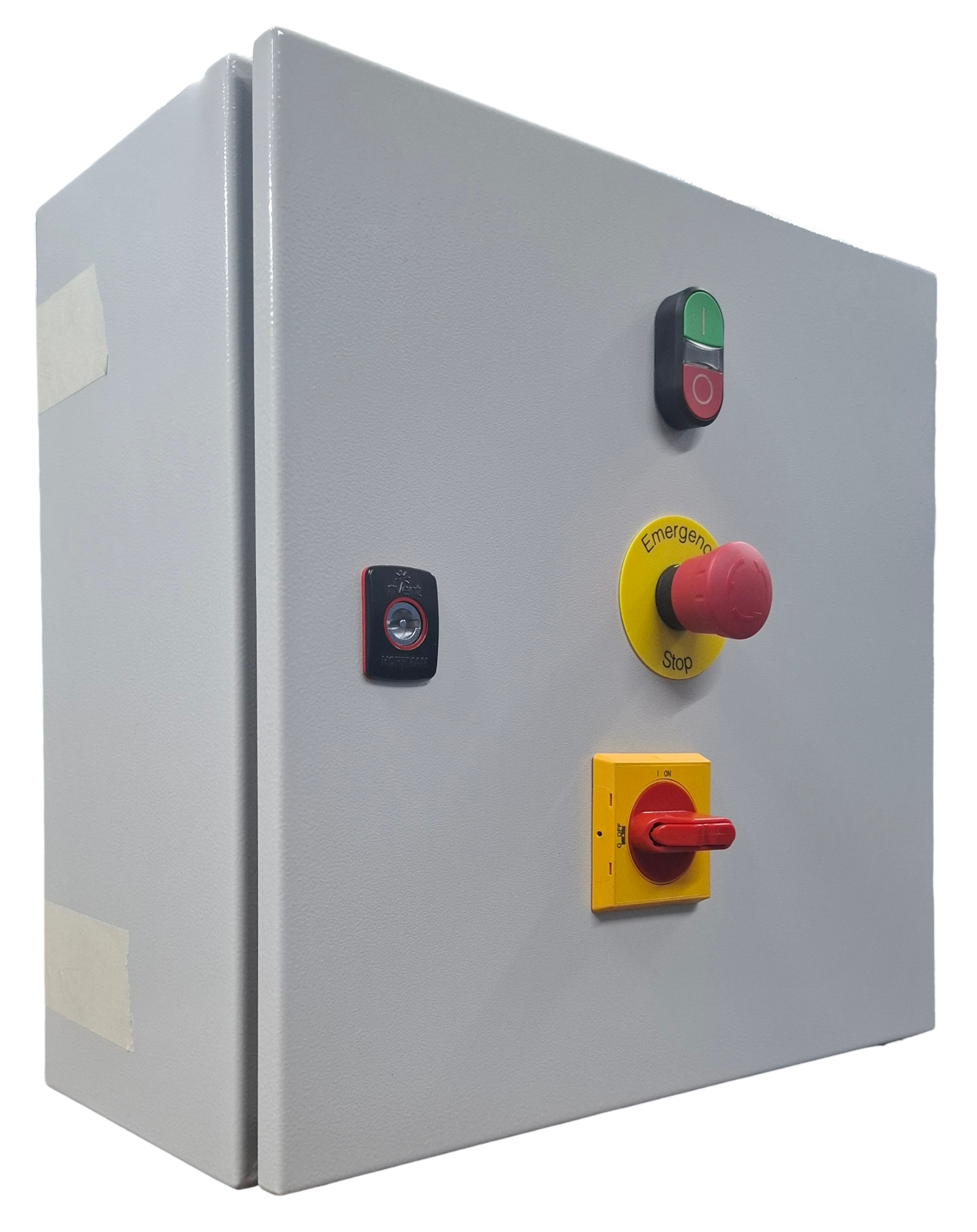

Photo of the outside of a 15kw star delta starter panel
Photo of the outside of a 15kw star delta starter panel Photo of the inside of a 15kw star delta starter panel Photo of the inside of a 15kw star delta starter panel

15kW Star Delta Starter, Trip Class 20

Starter panel with isolator to control a three phase 15kW motor. IP66 mild steel enclosure and comes included with MCB and 9-30A thermal overload relay to be set at 0.58 x full load current (FLC)
Availability: Please select required attribute(s)
SKU: SDS15i-C20
Manufacturer part number: SDS15i-C20
Free shipping
Manufacturer: IO Automation Limited
*
£611.59 excl VAT

Class 20 overload and max full load current 31A

  • 3Ph 415V 50Hz supply
  • Choice of control circuit voltage
  • IP66 mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • MCB and thermal overload relay

These panels are fully wired to terminals for motor connection with the incoming mains to be wired into the included isolator.

Suitable for:

Normal starting (CLASS 10)

  • Pumps
  • Heat pumps
  • Hydraulic pumps
  • Presses
  • Conveyor belts
  • Roller conveyors
  • Screw conveyors
  • Escalators
  • Piston compressors
  • Screw compressors
  • Small fans
  • Centrifugal blowers
  • Bow thrusters

Heavy starting (CLASS 20)

  • Stirrers
  • Extruders
  • Lathes
  • Milling machines



Class 20 overload and max full load current 31A

  • 3Ph 415V 50Hz supply
  • Choice of control circuit voltage
  • IP66 mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • MCB and thermal overload relay

These panels are fully wired to terminals for motor connection with the incoming mains to be wired into the included isolator.

Suitable for:

Normal starting (CLASS 10)

  • Pumps
  • Heat pumps
  • Hydraulic pumps
  • Presses
  • Conveyor belts
  • Roller conveyors
  • Screw conveyors
  • Escalators
  • Piston compressors
  • Screw compressors
  • Small fans
  • Centrifugal blowers
  • Bow thrusters

Heavy starting (CLASS 20)

  • Stirrers
  • Extruders
  • Lathes
  • Milling machines



Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 400x400x210mm
Star Delta Starter Specification
Rated power 15kW
Rated operational voltage 400-415V Three Phase
Rated motor current 31 A
Trip Class 20
Write your own review
  • Product can be reviewed only after purchasing it
  • Only registered users can write reviews
*
*
Bad
Excellent
*
*
*
Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 400x400x210mm
Star Delta Starter Specification
Rated power 15kW
Rated operational voltage 400-415V Three Phase
Rated motor current 31 A
Trip Class 20
