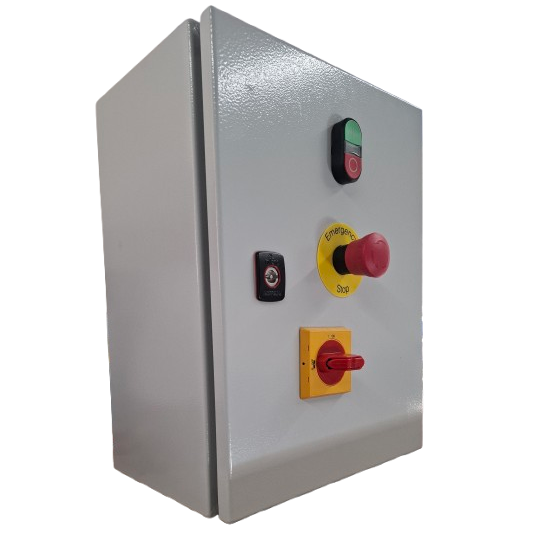

15kW Star Delta Starter

Starter panel with isolator to control a three phase 15kW motor. IP66 mild steel enclosure and comes included with MCB and 12-18A thermal overload relay to be set at 0.58 x full load current (FLC)
Availability: Please select required attribute(s)
SKU: SDS15i
Manufacturer part number: SDS15i
Free shipping
Manufacturer: IO Automation Limited
*
£439.66 excl VAT

Class 10 overload and max full load current 31A

  • 3Ph 415V 50Hz supply
  • Choice of control circuit voltage
  • IP66 mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • MCB and thermal overload relay

These panels are fully wired to terminals for motor connection with the incoming mains to be wired into the included isolator.

Suitable for:

Normal starting (CLASS 10)
Pumps
Heat pumps
Hydraulic pumps
Presses
Conveyor belts
Roller conveyors
Screw conveyors
Escalators
Piston compressors
Screw compressors
Small fans
Centrifugal blowers
Bow thrusters

Class 10 overload and max full load current 31A

  • 3Ph 415V 50Hz supply
  • Choice of control circuit voltage
  • IP66 mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • MCB and thermal overload relay

These panels are fully wired to terminals for motor connection with the incoming mains to be wired into the included isolator.

Suitable for:

Normal starting (CLASS 10)
Pumps
Heat pumps
Hydraulic pumps
Presses
Conveyor belts
Roller conveyors
Screw conveyors
Escalators
Piston compressors
Screw compressors
Small fans
Centrifugal blowers
Bow thrusters

Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 400x300x210mm
Star Delta Starter Specification
Rated power 15kW
Rated operational voltage 400-415V Three Phase
Rated motor current 31 A
Trip Class 10
