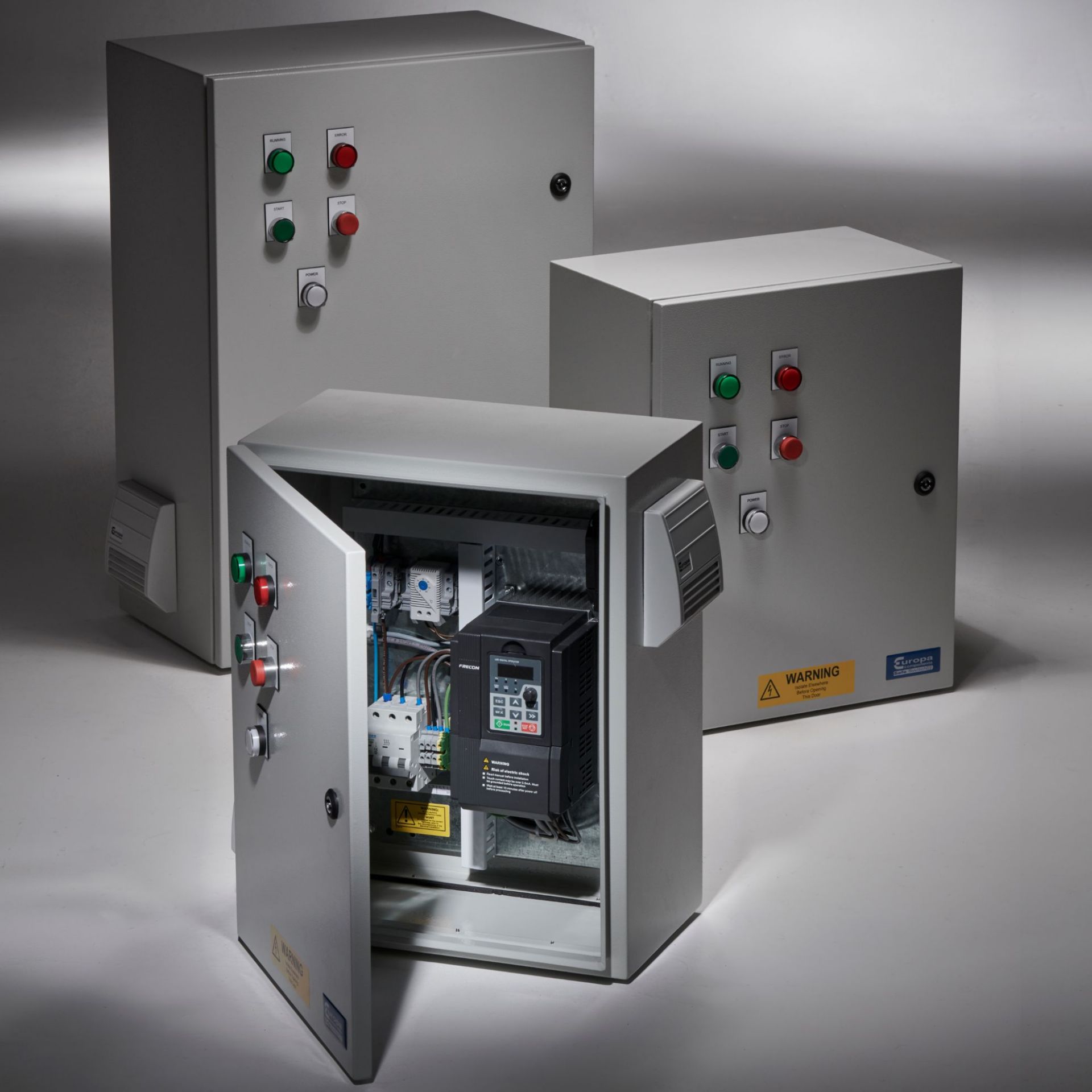

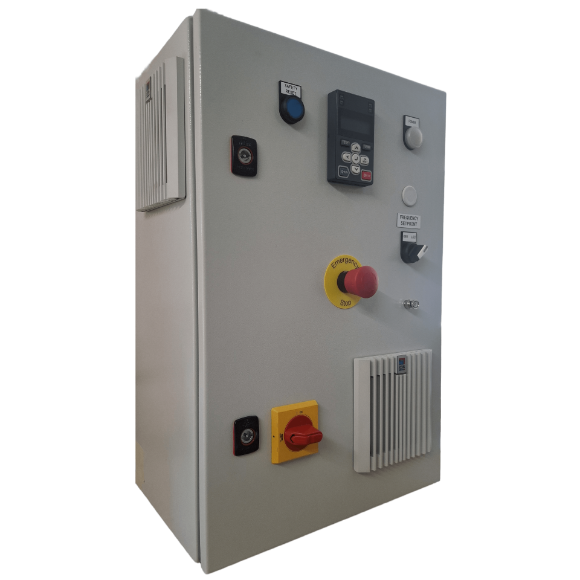

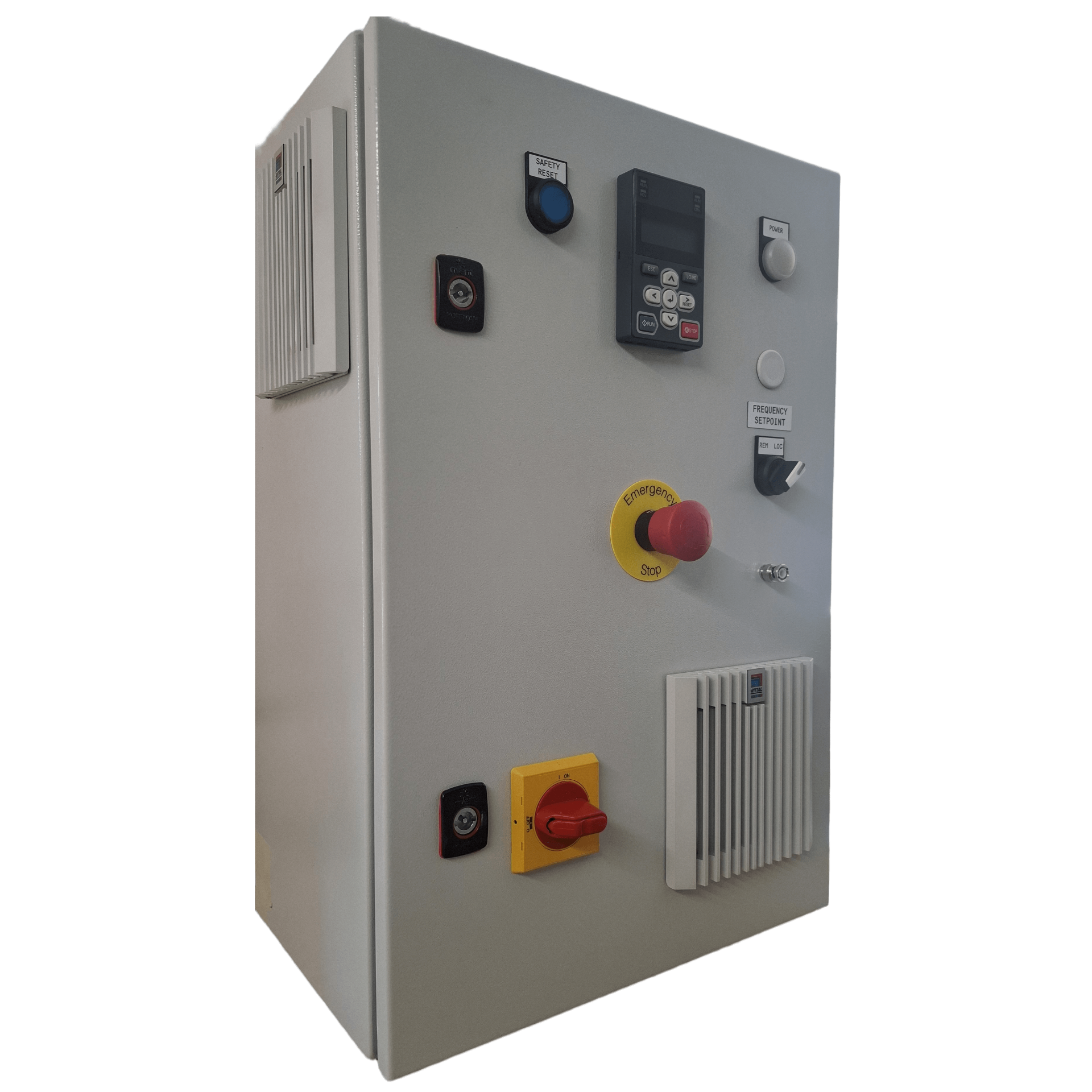

Picture of IP54 Enclosed 1.5kW/2.2kW 400V 3ph AC Inverter Drive
Picture of IP54 Enclosed 1.5kW/2.2kW 400V 3ph AC Inverter Drive Picture of IP54 Enclosed 1.5kW/2.2kW 400V 3ph AC Inverter Drive Picture of IP54 Enclosed 1.5kW/2.2kW 400V 3ph AC Inverter Drive

IP54 Enclosed 1.5kW/2.2kW 400V 3ph AC Inverter Drive

Fully enclosed IP54 ready to run Yaskawa Inverter Drive to run a 1.5kW motor rated to 4.8A or 2.2kW Fan/Pump rated to 5.4A
SKU: IN1.5I-400
Manufacturer part number: IN1.5I-400
Manufacturer: IO Automation Limited
£944.72 excl VAT

Input Current: 4.4A at High Overload, 5.9A when Fan/Pump rated.
Input Voltage: 380-480V Three Phase -15% +10% at 50-60Hz ±5%.

  • 3Ph 400V 50Hz supply
  • 110V AC SELV control circuit
  • Mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Drive Healthy LED
  • Drive Running LED
  • MCB
  1. Optional Potentiometer
  2. Optional Forwards/Reverse Switch
  3. Optional Safe Torque Off to SIL 3/PLe

EMC Compliance: IEC EN 61800-3 Category C2 (Restricted Domestic). Disabled by default, can be enabled via screw.

Input Current: 4.4A at High Overload, 5.9A when Fan/Pump rated.
Input Voltage: 380-480V Three Phase -15% +10% at 50-60Hz ±5%.

  • 3Ph 400V 50Hz supply
  • 110V AC SELV control circuit
  • Mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Drive Healthy LED
  • Drive Running LED
  • MCB
  1. Optional Potentiometer
  2. Optional Forwards/Reverse Switch
  3. Optional Safe Torque Off to SIL 3/PLe

EMC Compliance: IEC EN 61800-3 Category C2 (Restricted Domestic). Disabled by default, can be enabled via screw.

Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 500x400x260mm
Inverter Specifications
Rated Power 1.5kW, 2.2kW (Fan & Pump)
Supply Voltage 380-440V Three Phase
Operation Mode VxF or Sensorless Vector
