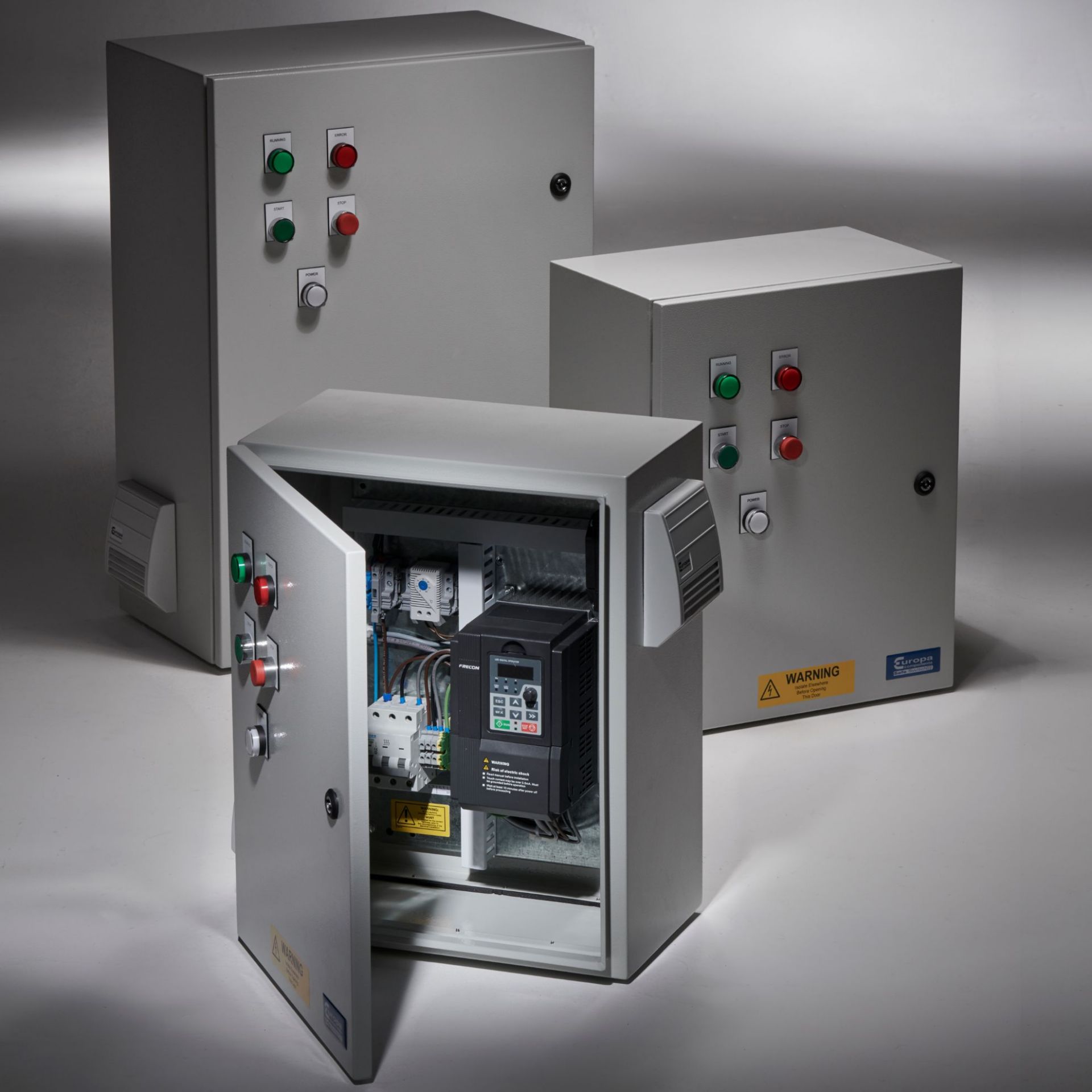

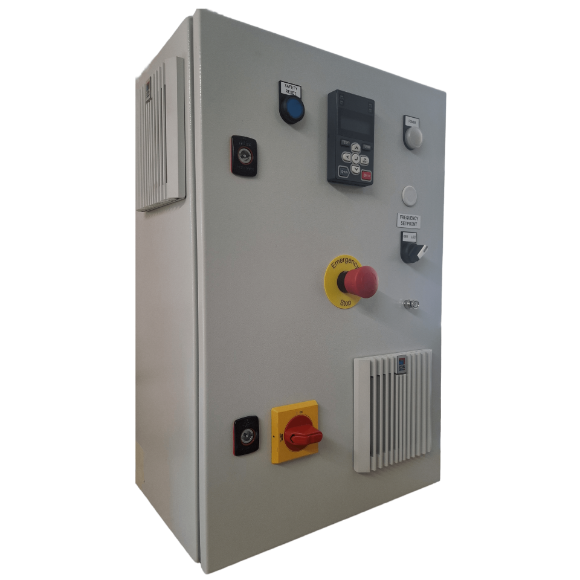

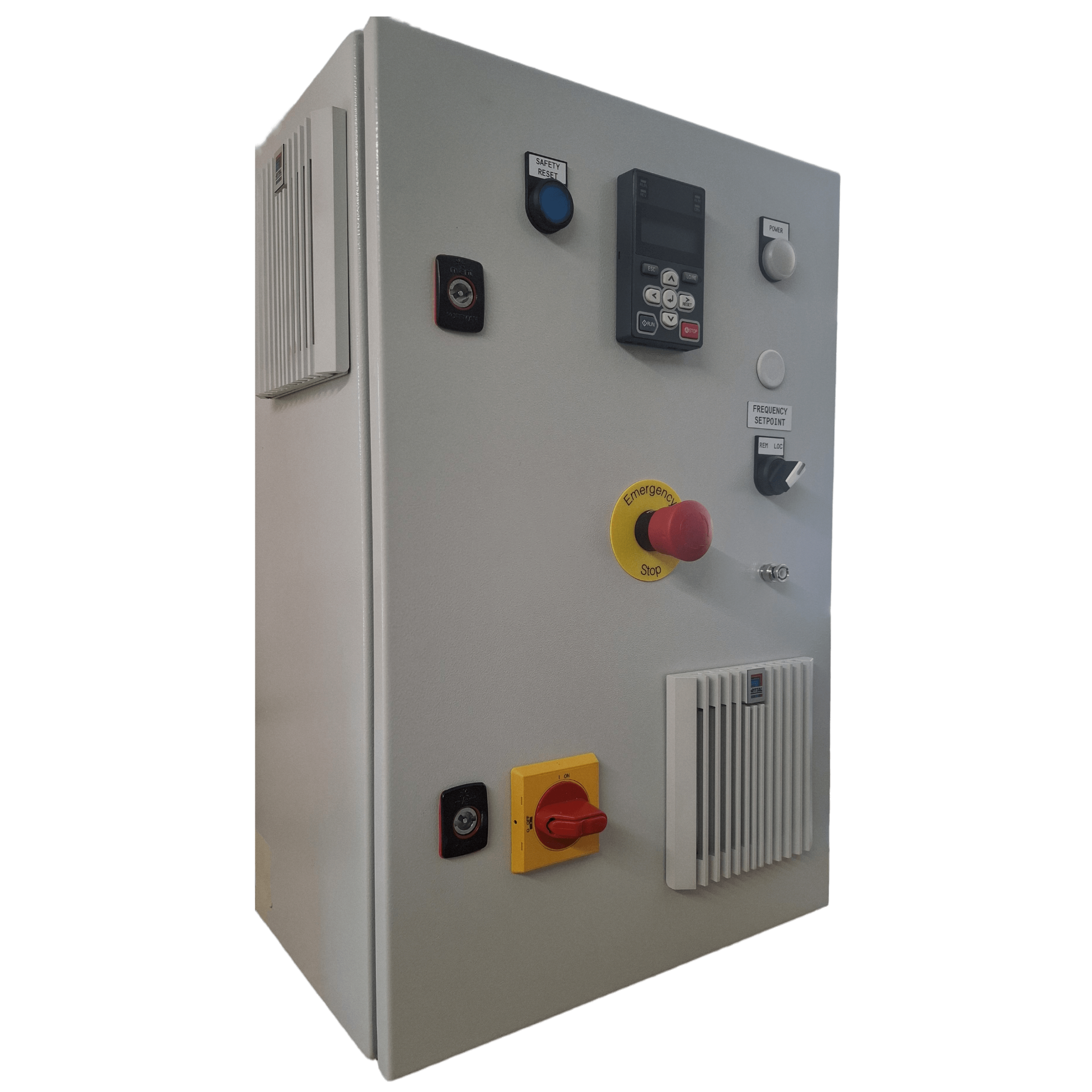

Picture of IP54 Enclosed 1.5kW/2.2kW 230V 1ph to 3ph AC Inverter Drive

IP54 Enclosed 1.5kW/2.2kW 230V 1ph to 3ph AC Inverter Drive

Fully enclosed IP54 ready to run Yaskawa Inverter Drive to run a 1.5kW motor rated to 8A or 2.2kW Fan/Pump motor rated to 9.6A.
SKU: IN1.5I-230
Manufacturers: Yaskawa , IO Automation Limited
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
£1,006.64 excl VAT
£979.77 excl VAT

Input Current: 14.1A at High Overload, 20.2A when Fan/Pump rated.
Input Voltage: 200-240V Single Phase -15% +10% at 50-60Hz ±5%.

  • 1Ph 230V 50Hz supply
  • 110V AC SELV control circuit
  • Mild steel enclosure
  • Fan and filter set
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Drive Healthy LED
  • Drive Running LED
  • MCB
  1. Optional Potentiometer
  2. Optional Forwards/Reverse Switch
  3. Optional Safe Torque Off to SIL 3/PLe

EMC Compliance: IEC EN 61800-3 Category C1 (Domestic). Disabled by default, can be enabled via screw.

Input Current: 14.1A at High Overload, 20.2A when Fan/Pump rated.
Input Voltage: 200-240V Single Phase -15% +10% at 50-60Hz ±5%.

  • 1Ph 230V 50Hz supply
  • 110V AC SELV control circuit
  • Mild steel enclosure
  • Fan and filter set
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Drive Healthy LED
  • Drive Running LED
  • MCB
  1. Optional Potentiometer
  2. Optional Forwards/Reverse Switch
  3. Optional Safe Torque Off to SIL 3/PLe

EMC Compliance: IEC EN 61800-3 Category C1 (Domestic). Disabled by default, can be enabled via screw.

Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 500x400x260mm
Inverter Specifications
Supply Voltage 200-240V Single Phase
Operation Mode VxF or Sensorless Vector
Write your own review
  • Product can be reviewed only after purchasing it
  • Only registered users can write reviews
*
*
Bad
Excellent
*
*
*
Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 500x400x260mm
Inverter Specifications
Supply Voltage 200-240V Single Phase
Operation Mode VxF or Sensorless Vector
