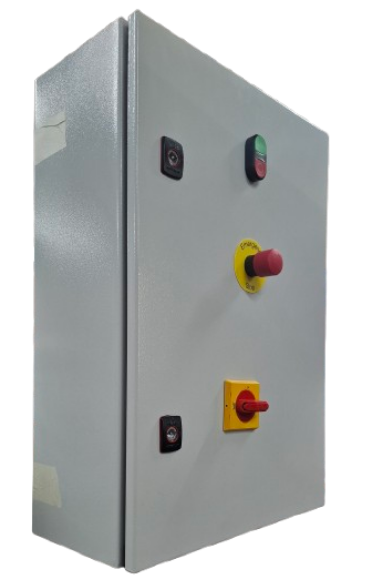

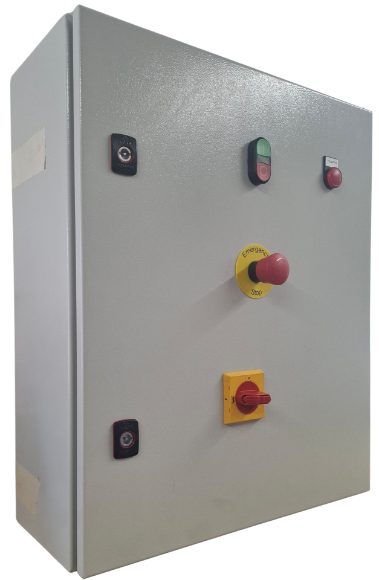

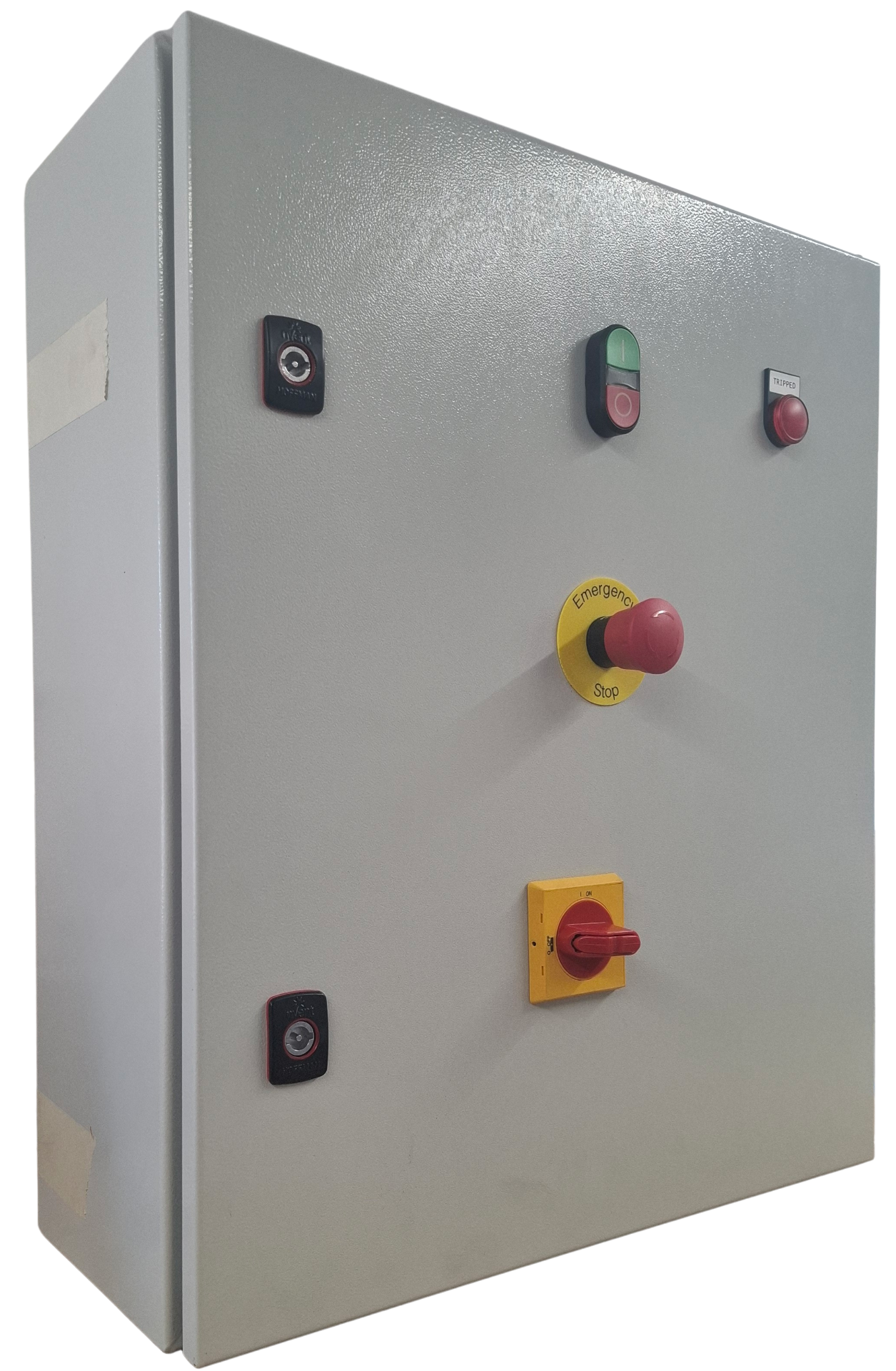

55kW Star Delta Starter

Starter panel with isolator to control a three phase 55kW motor. IP66 mild steel enclosure and comes included with fuses and 50-60A thermal overload relay to be set at 0.58 x full load current (FLC)
Availability: Please select required attribute(s)
SKU: SDS55i
Manufacturer part number: SDS55i
Delivery date: 3-5 days
Manufacturer: IO Automation Limited
*
£1,356.93 excl VAT

Class 10 overload and max full load current 103.4A

  • 3Ph 415V 50Hz supply
  • Choice of control circuit voltage
  • IP66 mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Fuses and thermal overload relay

These panels are fully wired to terminals for motor connection with the incoming mains to be wired into the included isolator.

Class 10 overload and max full load current 103.4A

  • 3Ph 415V 50Hz supply
  • Choice of control circuit voltage
  • IP66 mild steel enclosure
  • Door-interlocked isolator
  • Start, Stop and Estop pushbuttons
  • Fuses and thermal overload relay

These panels are fully wired to terminals for motor connection with the incoming mains to be wired into the included isolator.

Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 600x500x210mm
Write your own review
  • Product can be reviewed only after purchasing it
  • Only registered users can write reviews
*
*
Bad
Excellent
*
*
*
Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 600x500x210mm
