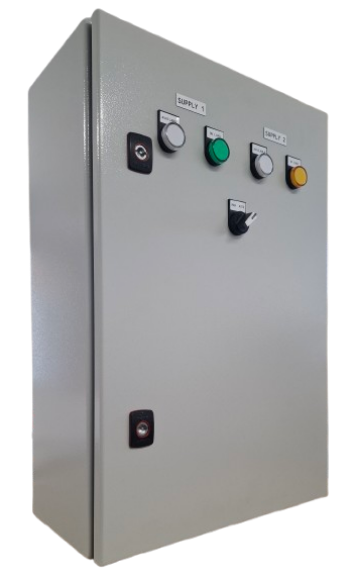

315A Motorised Automatic Transfer Switch (ATS)

Type PC ATSE (Motorised Switch) Conforms to: BS EN 60947-6-1:2005 and later amendments BS EN 60947-1

Availability: Built to order - current lead-time is 2-3 days.

SKU: ATS-P315

Manufacturer part number: ATS-P315

Delivery date: 1-2 days

Manufacturer: IO Automation Limited

Qty:

£1,690.94 excl VAT

Automatic transfer between two mains supplies or mains and generator supply

IP66 mild steel enclosure
Top cable entry
Bottom cable exit
315A AC-33B rated
Inbuilt microprocessor based AMF Controller
Auto/Manual/Remote operation
Display for programming, controlling and monitoring the real-time system voltage and frequency for both sources
3 Position isolation lock for - Source I - Off- Source II
Source 1 & Source 2 Protection -Under/over voltage, under/over frequency, phase missing & optional overload.
Mains failure based automatic generator start/stop operation.
Timers for transfer delay, recovery delay, start & stop delay.

Options (please enquire for more details)

Type PC ATSE (Motorised Switch)
Conforms to:
BS EN 60947-6-1:2005 and later amendments
BS EN 60947-1

Automatic transfer between two mains supplies or mains and generator supply

IP66 mild steel enclosure
Top cable entry
Bottom cable exit
315A AC-33B rated
Inbuilt microprocessor based AMF Controller
Auto/Manual/Remote operation
Display for programming, controlling and monitoring the real-time system voltage and frequency for both sources
3 Position isolation lock for - Source I - Off- Source II
Source 1 & Source 2 Protection -Under/over voltage, under/over frequency, phase missing & optional overload.
Mains failure based automatic generator start/stop operation.
Timers for transfer delay, recovery delay, start & stop delay.

Options (please enquire for more details)

Type PC ATSE (Motorised Switch)
Conforms to:
BS EN 60947-6-1:2005 and later amendments
BS EN 60947-1

Products specifications

Attribute name	Attribute value
Dimensions (height x width x depth)	800x600x210mm
ATS-P Specification
Current Rating (AC-33B)	315A
No. of Poles	4
Rated Operating Voltage	415V AC
Rated Insulation Voltage (Ui) V - Power Circuit	690V
Rated Insulation Voltage (Ui) V - Control Circuit	500V
Rated Impulse Withstand Volatge (Uimp) - Power Circuit	8kV
Rated Impulse Withstand Volatge (Uimp) - Control Circuit	4kV
Utilization Category	AC-33B
Rated Short-Circuit Withstand Current (kA RMS) Icw (0.1/1s)	25/50 kA
Rated Short-Circuit Making Capacity (kA Peak) Icm	26 kA
Rated Limit Short-Circuit Current (kA) Iq	120 kA
Auxilliary DC Volatge	12-24V DC
