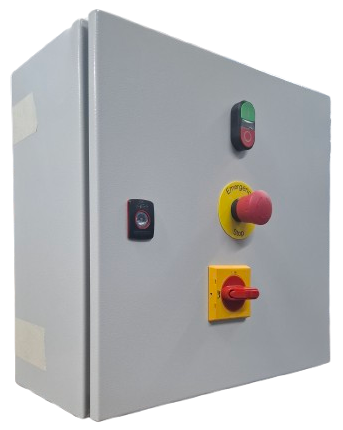

Picture of 22kW Soft Starter Panel - Basic Performance

22kW Soft Starter Panel - Basic Performance

Siemens Sirius 3RW40 Soft Starter panel with isolator to control a three phase 22kW motor. IP66 mild steel enclosure. Soft starting and stopping | Current limiting | Motor overload protection | Short-circuit protection
Availability: Out of stock - on backorder and will be dispatched once in stock (2-4 days).
SKU: SS22I-3RW40
Manufacturer part number: SS22I-3RW40
Delivery date: 3-5 days
*
£1,413.31 excl VAT

22kW 3Ph 415V 50Hz Supply
IP65 mild steel enclosure.
Start / Stop & E-Stop buttons on panel
2 Phase controlled soft starter
Overload & short-circuit protection
Normal starting (CLASS 10)

Suitable for:

Pumps
Pumps with special pump stop (to prevent water hammer)
Heat pumps
Hydraulic pumps
Presses
Conveyor belts
Roller conveyors
Screw conveyors

22kW 3Ph 415V 50Hz Supply
IP65 mild steel enclosure.
Start / Stop & E-Stop buttons on panel
2 Phase controlled soft starter
Overload & short-circuit protection
Normal starting (CLASS 10)

Suitable for:

Pumps
Pumps with special pump stop (to prevent water hammer)
Heat pumps
Hydraulic pumps
Presses
Conveyor belts
Roller conveyors
Screw conveyors

Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 600x400x260mm
Soft Starter Technical Specification
Rated operational voltage 400V -15/+10%
Rated operational current Ie at 40 °C 45 A
Rated frequency 50/60Hz ±10
Starts per hour 23
Write your own review
  • Product can be reviewed only after purchasing it
  • Only registered users can write reviews
*
*
Bad
Excellent
*
*
*
Products specifications
Attribute name Attribute value
Dimensions (height x width x depth) 600x400x260mm
Soft Starter Technical Specification
Rated operational voltage 400V -15/+10%
Rated operational current Ie at 40 °C 45 A
Rated frequency 50/60Hz ±10
Starts per hour 23
