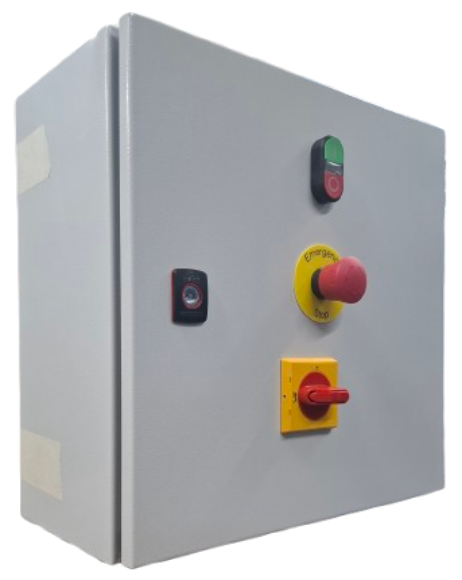

11kW Star Delta Starter, Trip Class 20 | 3 Phase | Industrial

The Trip Class 20 configuration allows for longer acceleration times compared to standard Class 10, making it ideal for applications where motors require additional time to reach full speed without nuisance tripping.

Suitable for industrial environments where durability and consistent performance are essential.

Class 20 overload and max full load current 22.4A

• 3Ph 415V 50Hz supply
• Choice of control circuit voltage
• IP66 mild steel enclosure
• Door-interlocked isolator
• Start, Stop and Estop pushbuttons
• MCB and thermal overload relay
• UK Built

These panels are fully wired to terminals for motor connection with the incoming mains to be wired into the included isolator.

Suitable for:

Normal starting (CLASS 10)

• Pumps
• Heat pumps
• Hydraulic pumps
• Presses
• Conveyor belts
• Roller conveyors
• Screw conveyors
• Escalators
• Piston compressors
• Screw compressors
• Small fans
• Centrifugal blowers
• Bow thrusters

Heavy starting (CLASS 20)

• Stirrers
• Extruders
• Lathes
• Milling machines
